Biomimetic Structural Analysis of Eggshell Membrane and Eggshell SEM Characterization Using COXEM EM-40
1. Introduction
The eggshell system is a representative example of a naturally optimized biomimetic structure, combining mechanical protection, permeability control, and antimicrobial defense within a lightweight architecture. The eggshell membrane and eggshell function as a dual-layer barrier, offering valuable inspiration for bio-inspired materials used in biomedical, packaging, and filtration applications. In this study, scanning electron microscopy (SEM) was employed to investigate the microstructural features of the eggshell membrane and eggshell from a biomimetics perspective.
2. Sample Preparation
Eggshell samples were mechanically separated to expose both the eggshell membrane and the calcified shell layer. The specimens were gently cleaned to remove residual organic contaminants and dried under ambient conditions. Each sample was mounted on an aluminum SEM stub using conductive carbon tape. To minimize surface charging and enhance image quality, a thin conductive coating of Pt was applied prior to SEM observation.
3. SEM Analysis Conditions
SEM analysis was performed using a COXEM EM-40 Tabletop Scanning Electron Microscope under the following conditions:
-
- Accelerating voltage: 20 kV
- Working distance (WD): 15 mm
- Imaging mode: Secondary Electron (SE)
- Vacuum mode: High Vacuum
- Magnification range: ×200 – ×10,000
These conditions enabled high-resolution visualization of both fibrous organic structures and mineral-based porous architectures.
4. Results and Discussion
SEM observations revealed distinct structural characteristics between the two layers. The eggshell membrane (top) exhibited a dense, interwoven fibrous network composed of micron-scale fibers, forming a flexible yet mechanically resilient structure. This network plays a critical role in microbial filtration, moisture regulation, and adhesion control at the biological interface.

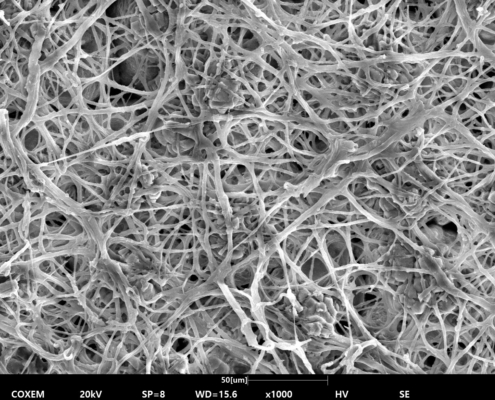

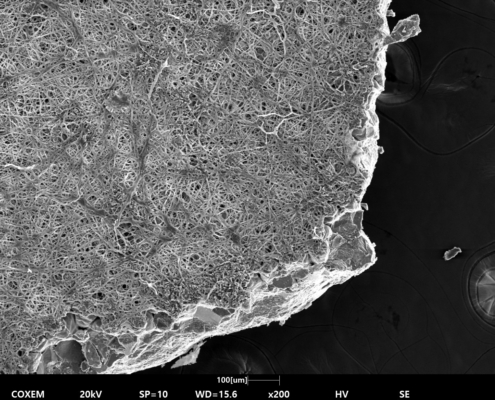

Fig. SEM images of the eggshell membrane
In contrast, the eggshell (bottom) displayed a porous calcium carbonate-based structure with uniformly distributed micro-pores. This architecture contributes to mechanical strength, impact energy dissipation, and gas permeability. The hierarchical combination of a fibrous membrane and a rigid porous shell demonstrates an efficient natural design strategy that integrates multiple functional requirements within a minimal material system.
Fig. SEM images of the eggshell
5. Biomimetic Implications
The observed dual-layer architecture provides key design principles for biomimetic engineering, including gradient porosity, fiber-reinforced membranes, and multifunctional protective layers. These insights may be applied to the development of bio-inspired filtration membranes, antimicrobial packaging materials, and lightweight protective structures.
6. Conclusion
This study demonstrates that COXEM EM-40 enables precise and reliable SEM characterization of complex biological structures. The detailed visualization of eggshell membrane and eggshell microstructures highlights their potential as model systems for biomimetic material design and confirms the suitability of tabletop SEM platforms for advanced biological and materials research.
