Products
Window to the Nano World
SEM
Tabletop SEMEM-40 / EM-40PE
EM-40

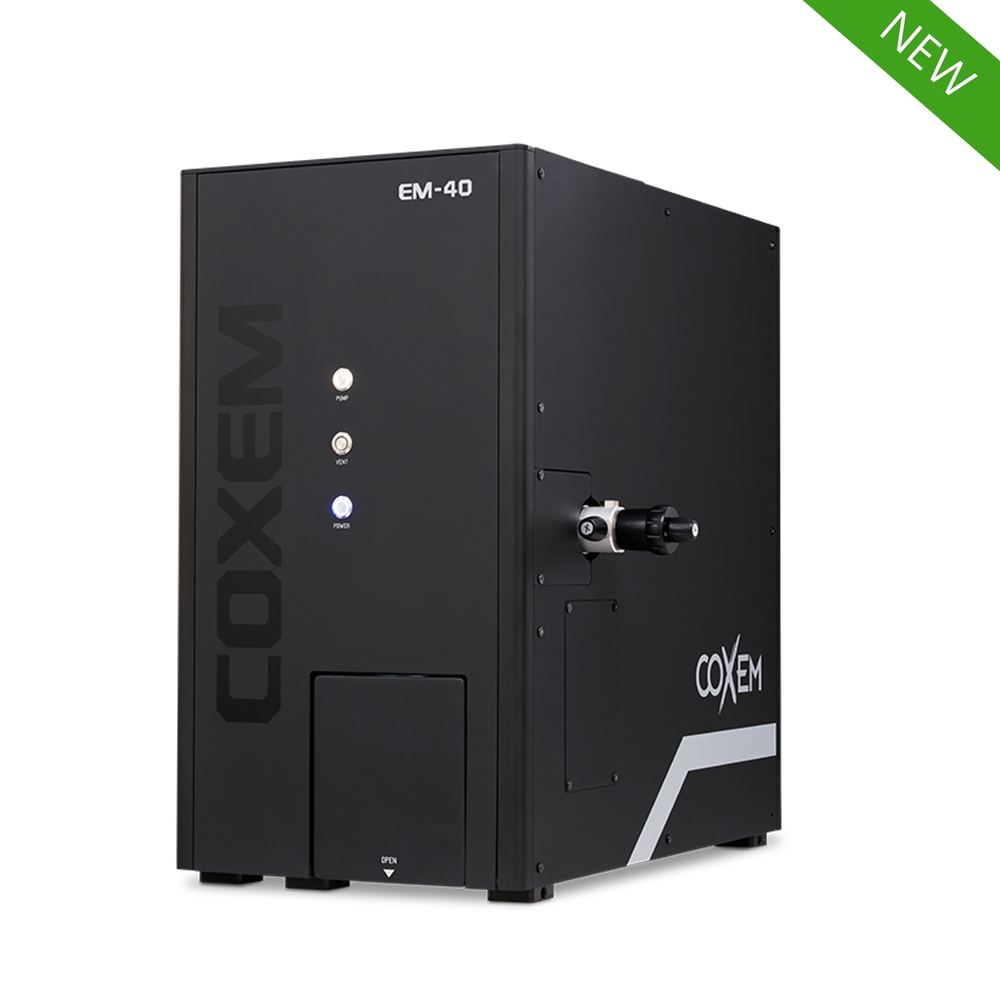

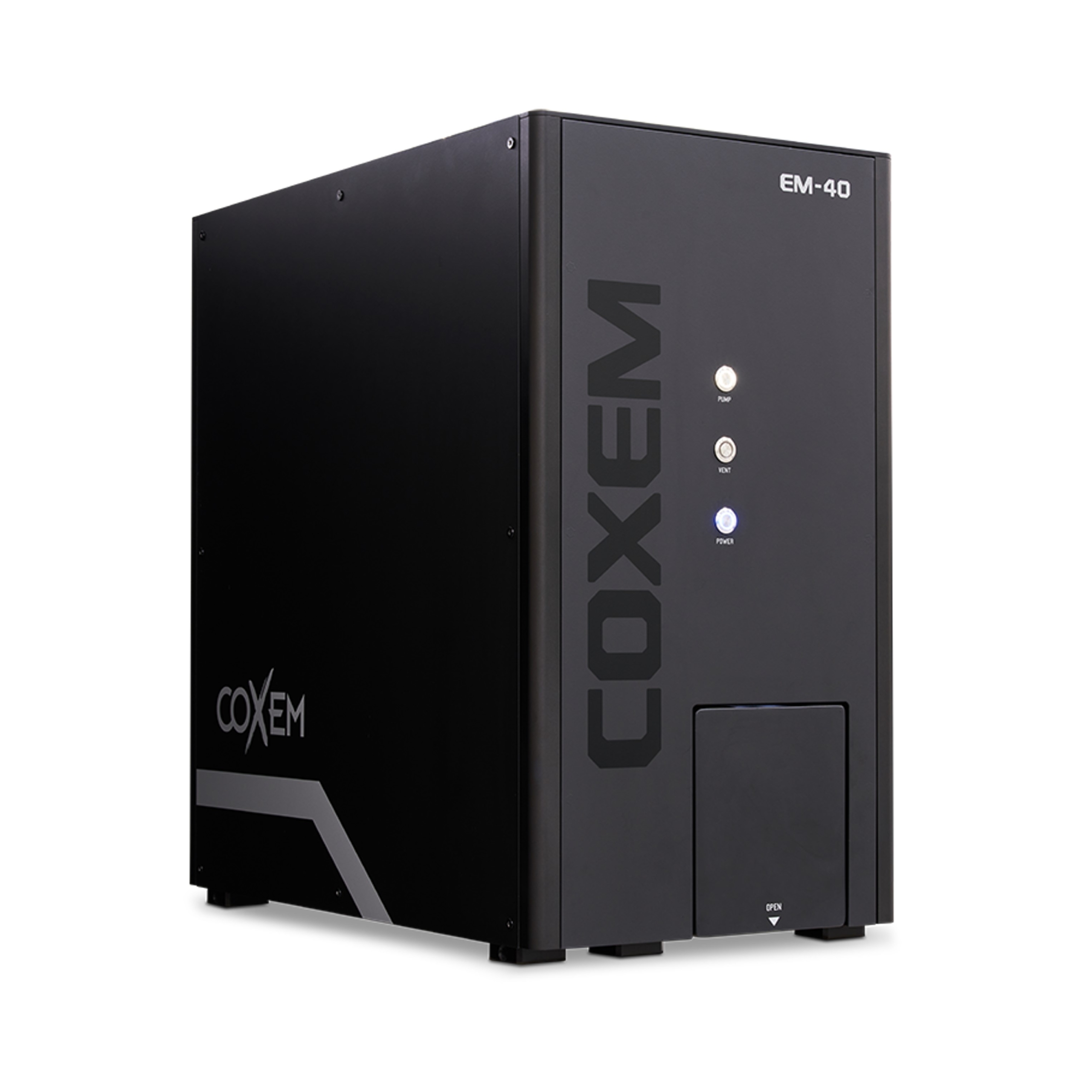

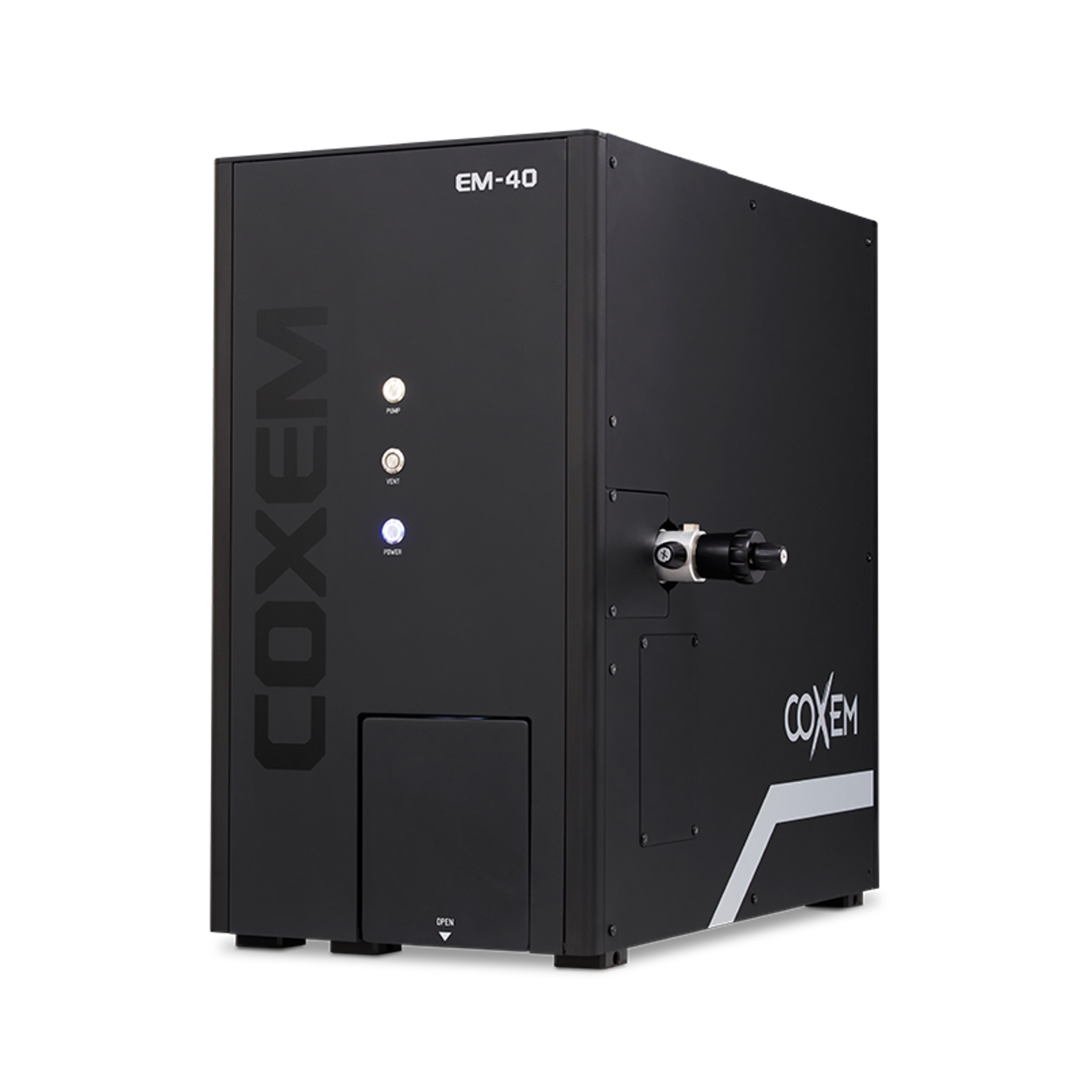

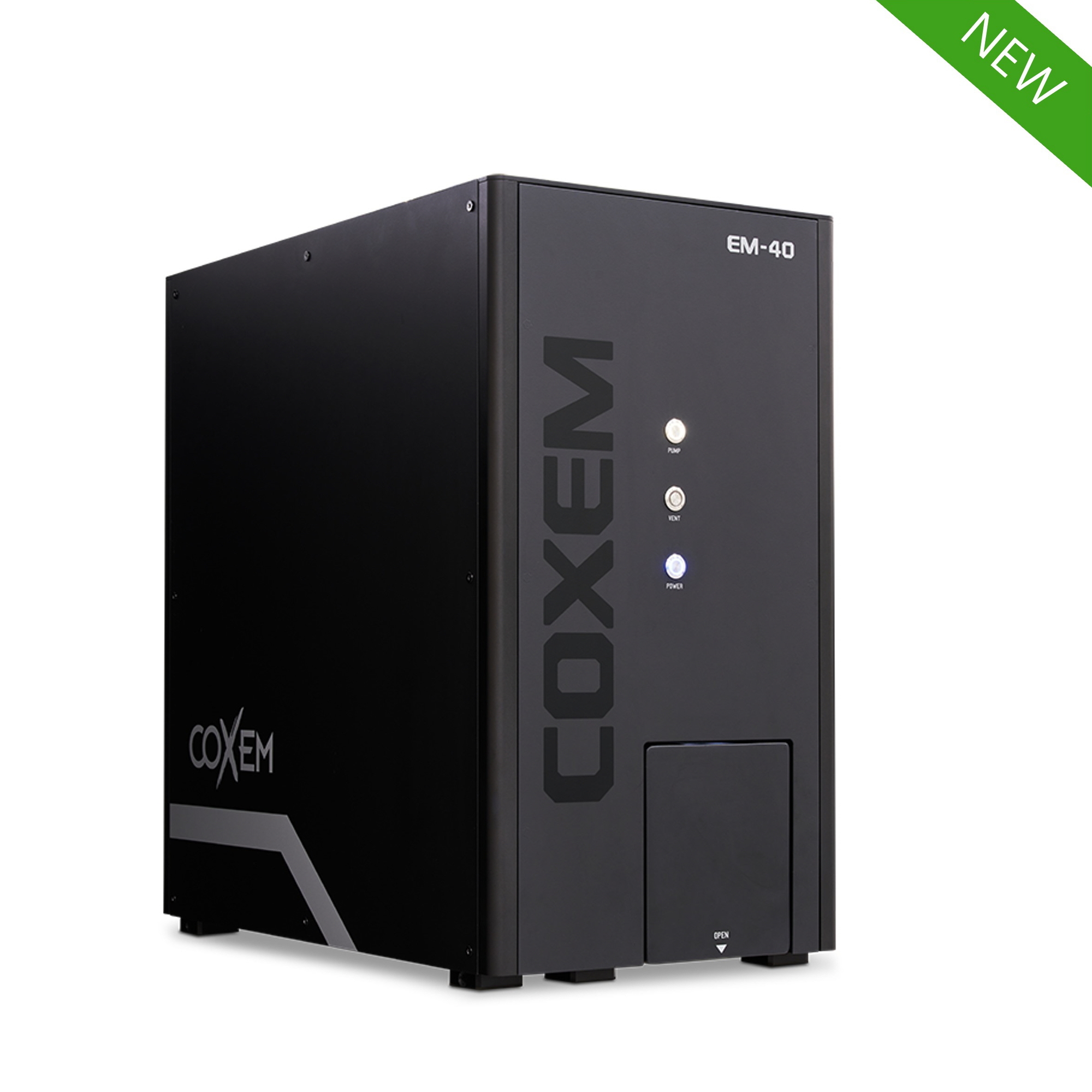

Introducing the EM-40 — COXEM’s latest tabletop SEM, launched in 2024.
Powered by the all-new Nanostation V5, the EM-40 delivers ultra-fast performance with 5th-generation signal processing, producing crisp, high-resolution images at speeds of up to 13 frames per second.
Designed with productivity in mind, its intuitive GUI streamlines the entire imaging workflow, allowing users to capture and optimize images quickly and effortlessly. Flexible image settings provide full control, making it easy to achieve the desired results.
The motorized X, Y, and Z stage ensures smooth and precise sample navigation, while the enhanced auto-focus function delivers sharp images instantly. Whether you are an experienced operator or a first-time user, the EM-40 makes high-quality SEM imaging faster, easier, and more accessible than ever.
EM-40PE
The EM-40PE is a specialized derivative of the EM-40, optimized for particle analysis.
It supports larger samples as well as standard 47 × 47 mm membrane filters, making it ideal for particle inspection applications.
With a compact 65 × 65 mm EDS and integrated feature analysis, the EM-40PE delivers fast and accurate particle characterization — perfectly suited for applications where speed and precision matter.
“Big Performance, Small Footprint”
Easy-to-use Intuitive GUI
Overview
Nanostation V5 features an intuitive interface that makes SEM operation simple for users of all levels.
It combines imaging, analysis, and data management in one platform for a fast and efficient workflow.
Key Benefits
- Intuitive UI/UX for effortless operation
- Fast image acquisition and saving
- Integrated management of analysis data
- User-friendly automated features
Automatic NaviCAM Image Saving
Overview
Automatically captures and stores optical NaviCAM images during sample loading, enabling easy correlation between SEM images and sample locations.
Key Benefits
- Accurate sample position tracking
- Easy navigation
- Improved analysis workflow
Variable Pressure (VP) Operation
Overview
VP minimizes the surface charging, enabling stable imaging of non-conductive, non-coated samples.
Key Benefits
- 3-step vac. Level 10, 20, 30Pa
- Charging suppression
- Coating-free imaging
- Non-conductive sample imaging
- Non-destructive imaging conditions
- Enables imaging of polymers, ceramics, and biological samples
3D Reconstruction
Overview
Deep3D transforms BSE images into true 3D insights, enabling precise and intuitive surface analysis.
Key Benefits
- Live 3D
- Surface morphology visualization
- 3D height analysis
- Material surface research
- Easy report generation
Nano-Particle Analyzer
Overview
Advanced particle analysis from SEM images, delivering precise and reproducible quantitative data.
Key Benefits
- Automated Particle Analysis
- Quantitative Measurement
- Material Characterization
- Easy report generation
Large Area Imaging
Overview
Cover the larger area with automated large-area scanning and seamless image stitching — enabling comprehensive, high-resolution analysis of entire samples in a single view.
Key Benefits
- Automatic stitching
- Large area mapping
- High-resolution wide-area analysis
STEM Imaging for Biological Samples
Overview
Unlock high-contrast transmission imaging with STEM, enabling clear visualization and analysis of nanoscale structures and biological samples.
Key Benefits
- High-contrast imaging
- Nanostructure analysis
- Ideal for biological research
Cooling Module for Biological Samples
Overview
Preserve samples in their most natural state with a dedicated low-temperature SEM solution.
The Cooling Module enables stable imaging of moisture- and heat-sensitive samples by minimizing evaporation, deformation,
and contamination — delivering high-resolution results closer to real conditions.
With simple installation and reliable temperature control, it expands SEM capabilities to challenging samples such as biological materials, polymers, and food.
Key Benefits
- Stable imaging at low temperatures
- Ideal for wet and hydrated samples
- Maintains native sample integrity
- Optimized for biological applications
- Expanded application versatility
