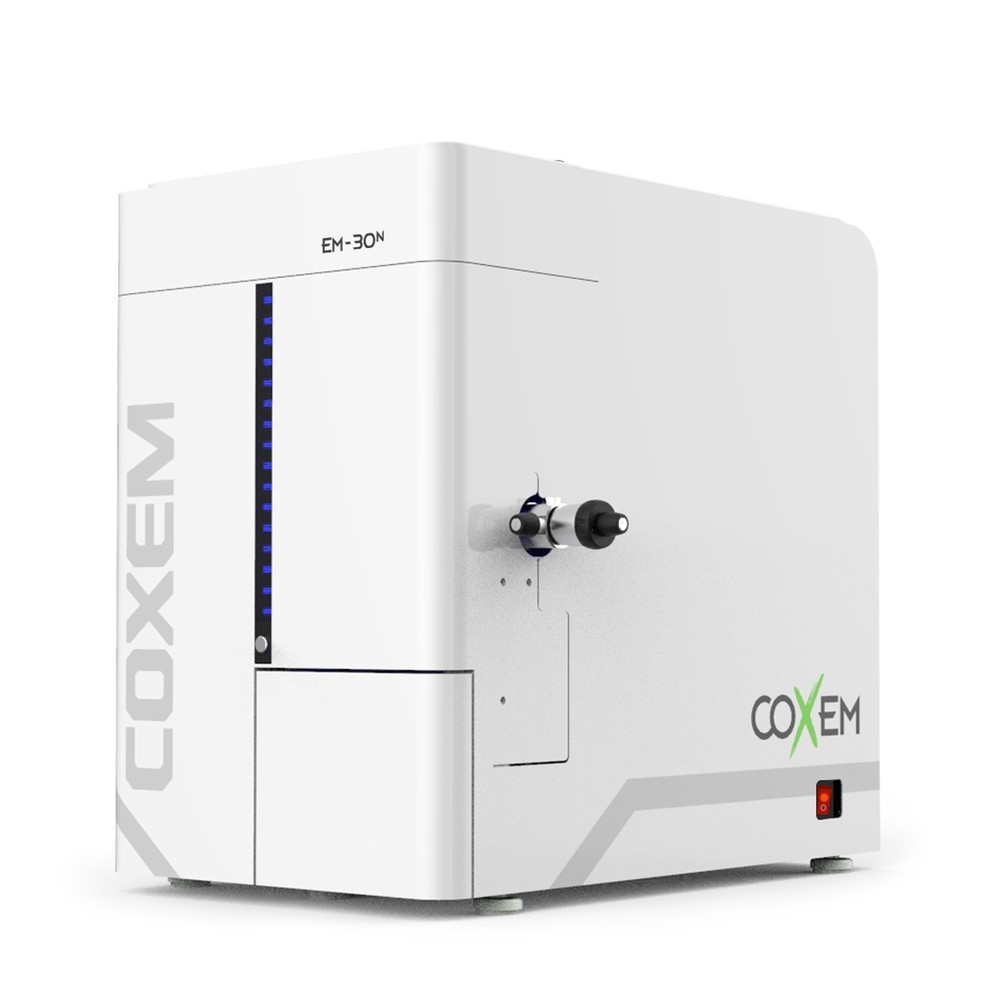

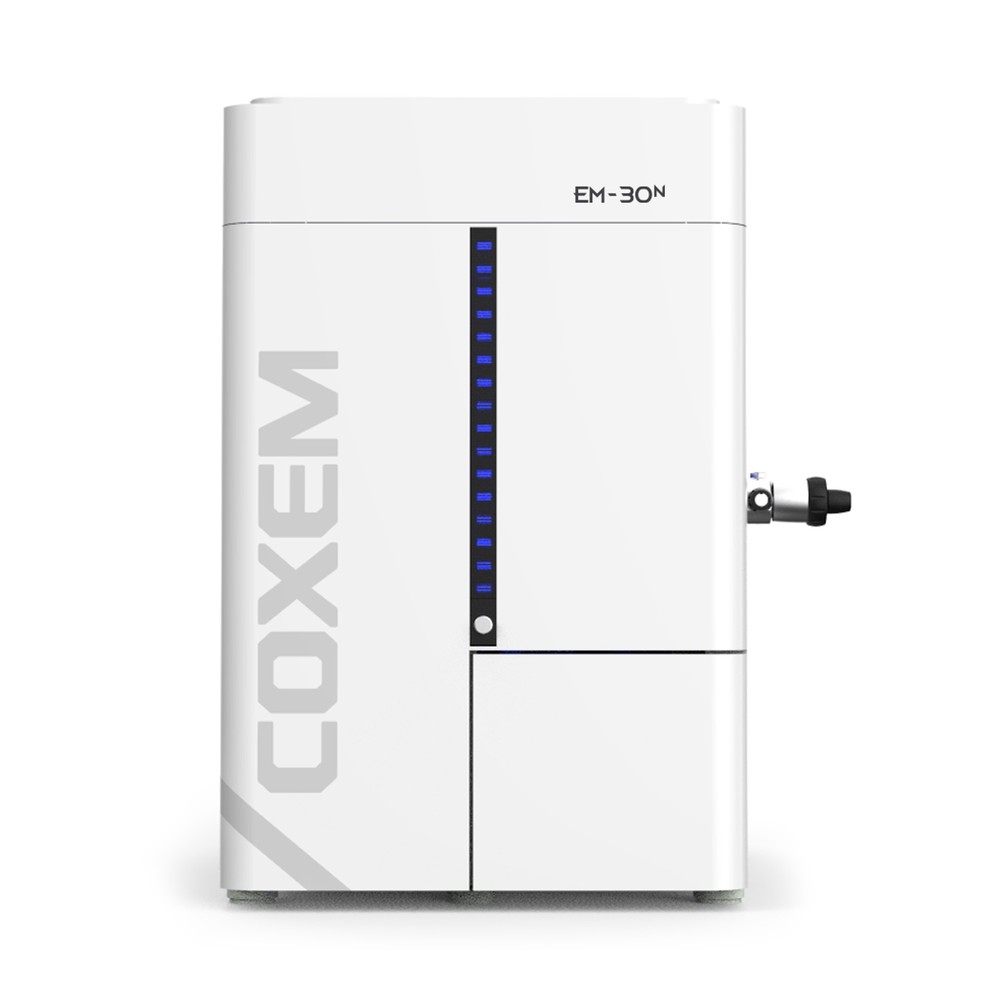

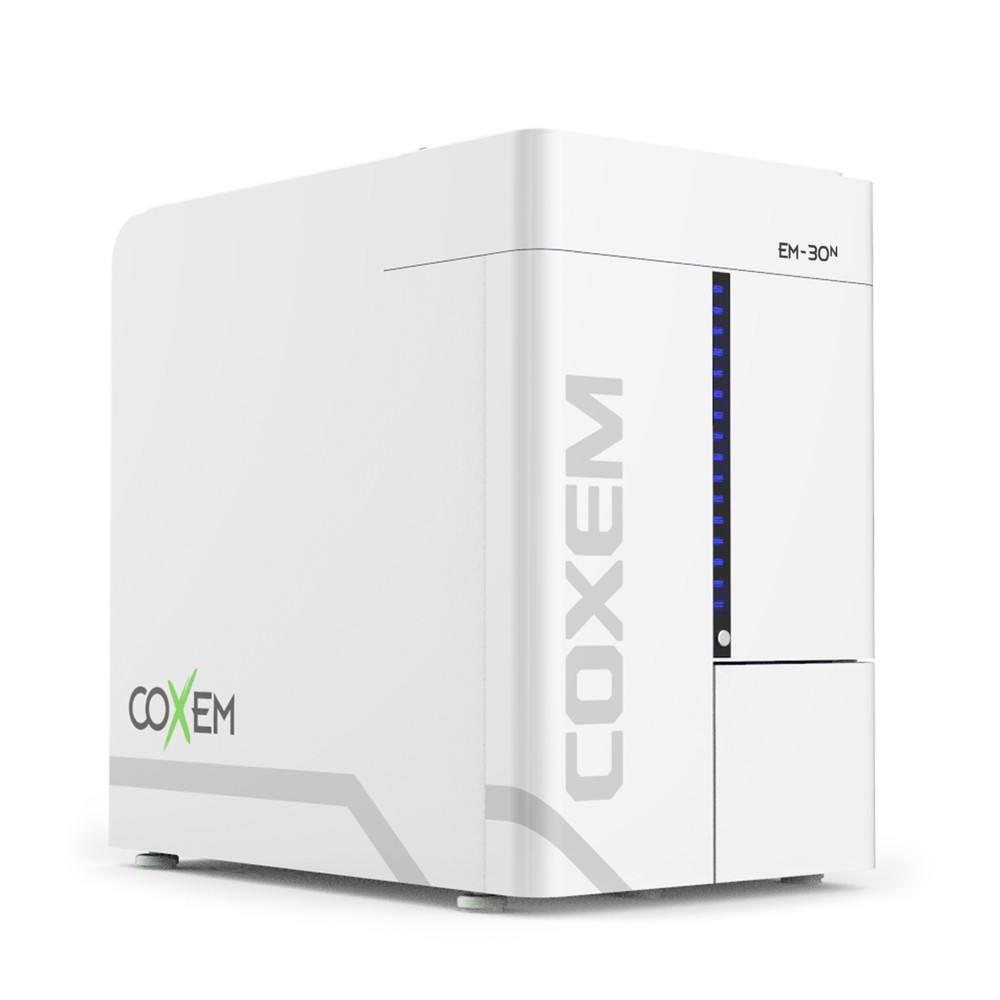

EM-30N
The EM-30N is our most popular model of tungsten filament-based Tabletop SEM. Featuring our 5th generation DSP (Digital Signal Processing) technology it delivers crystal-clear, low noise images even at high magnification. Panorama Mode allows delivers wide-area scanning capability, while LV (Low Vacuum) gives you the ability to capture pristine, high-quality images of non-conductive samples without coating. The EM-30N is also the world’s first tabletop SEM that seamlessly integrates with compact EBSD, further elevating its versatility and performance.
Specifications
| Electron gun | Tungsten filament (W) |
|---|---|
| >Spatial resolution | < 5nm |
| Photo magnification | 15x to 150,000x |
| Display magnification | 15x to 150,000x |
| Accelerating voltage | 1 ~ 30kV (1kV increments) |
| Sample stage | X : 35mm, Y : 35mm, Tilt : 0 ~ 45° |
| Detector | SE, BSE* |
| Vacuum mode | HV, LV* |
| Vacuum system | Turbo pump (80L) + Rotary pump (100L) |
| Dimension (W × L × H) | 400(W) × 630(L) × 600(H)mm |
| Weight | 85kg |
| Features | Panorama v1 Auto focus Auto brightness & contrast Auto start Signal mixing Dual display & Save Line profile Image filtering Annotation tool ChamberCam |
| Data output format | JPEG, TIFF, BMP |
| Options* | BSE, EDS, EBSD, STEM NaviCam, Coolstage LV (20Pa), VP (10 / 20 / 30Pa) Panorama v2, NanofiberScanner Diaphragm pump |
